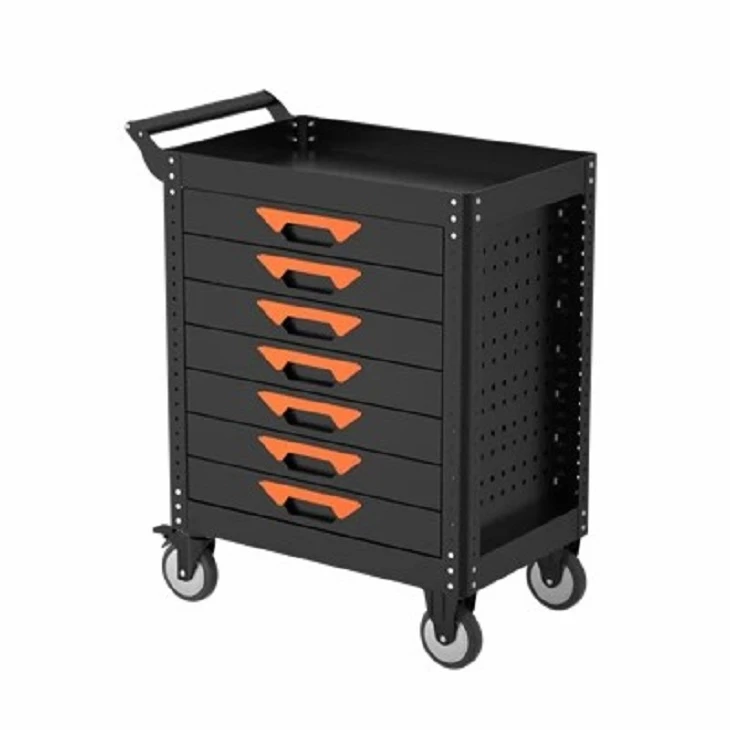

Keep frequently used hand tools accessible and smaller workshop components organized with a mobile tool cart featuring an integrated top storage tray and multiple lower drawers. This configuration provides technicians with a practical workspace at the point of service while keeping accessories and maintenance supplies separated by type.
For automotive service centers, industrial maintenance facilities, and professional equipment distributors, selecting the right cart requires evaluating structural specifications beyond basic drawer counts. Overall dimensions, individual drawer load ratings, slide extension performance, caster configurations, and surface coatings directly influence durability and performance under daily workshop conditions.
Technical Specifications
|
Specification Category |
Technical Details |
|
Product Type |
Mobile Tool Cart with Top Tray and Drawers |
|
Primary Material |
Cold-rolled steel sheet (Body: 1.0mm thickness, Drawers: 0.8mm thickness) |
|
Overall Dimensions (W × D × H) |
840mm × 460mm × 960mm (33.1" × 18.1" × 37.8") |
|
Drawer Count & Configuration |
7 Drawers (5 small: 533mm × 400mm × 75mm; 2 large: 533mm × 400mm × 155mm) |
|
Slide Mechanism |
45mm ball-bearing slides with 100% full-extension capability |
|
Rated Load per Drawer |
45 kg (99 lbs) static / dynamic tested |
|
Total Cart Load Capacity |
350 kg (771 lbs) maximum static capacity |
|
Caster Specifications |
5" × 2" (125mm × 50mm) TPR heavy-duty casters (2 swivel with total-lock brakes, 2 rigid fixed) |
|
Locking System |
Central internal cylinder locking mechanism with 2 folding keys |
|
Surface Treatment |
Multi-stage acid-cleaned, iron phosphated, and electrostatically powder-coated finish |
|
Standard Finish Colors |
RAL 3020 Traffic Red / RAL 7016 Anthracite Grey textured powder coat |
|
Net Product Weight |
64 kg (141 lbs) |
|
Packaging Dimensions |
900mm × 520mm × 1020mm (Reinforced corrugated carton with protective honeycomb padding and wooden pallet base) |
Key Structural & Functional Features
Integrated Top Storage Tray
Immediate Access: The open top tray provides a dedicated holding area for hand tools, fasteners, and frequently handled accessories needed during active service tasks, reducing repetitive drawer openings.
Work Surface Utility: Built with raised edges to prevent component roll-off, serving as an immediate staging area for active tasks.
Multi-Drawer Storage Configuration
Systematic Organization: Individual drawers separate sockets, wrenches, consumables, and precision instruments to streamline tool management and inventory checks.
Ball-Bearing Slide Performance: Drawers operate on precision ball-bearing slides designed to support smooth, full-extension access even when fully loaded.
Heavy-Duty Mobile Performance
Maneuverability: Equipped with industrial-grade swivel and fixed casters, allowing technicians to transport tools safely across concrete workshop floors and service bays.
Stability Controls: Integrated total-lock braking mechanisms secure the cart firmly in place during active use.
Flexible Configuration & OEM Adaptation
Customization Options: Adaptable for private-label and distribution requirements, including custom color finishes, specialized drawer layouts, EVA drawer liners, and branded badging.
Typical Industrial Applications
Automotive Repair & Service Facilities: Keeps essential hand tools, pneumatic attachments, and diagnostic accessories directly adjacent to the service lift or work bay.
Industrial Maintenance & MRO: Provides mobile tool transport for maintenance technicians servicing heavy machinery, production lines, and plant facilities.
Assembly & Production Lines: Organizes specialized tools, fasteners, and components at manufacturing workstations to minimize transit time and improve operational ergonomics.
Tool & Equipment Distributors: Serves as a core addition to wholesale catalogs, private-label brand portfolios, and regional industrial supply inventories.
Manufacturing & Quality Verification
Rigorous quality control protocols are applied across raw material selection, forming, and finishing processes:
Material Testing: Incoming cold-rolled steel sheets undergo thickness and tensile verification.
Forming & Welding: Precision CNC laser cutting and automated bending ensure uniform structural alignment and tight dimensional tolerances.
Surface Coating: Multi-stage chemical pretreatment (degreasing, phosphating) precedes electrostatic powder application to maximize corrosion resistance and paint adhesion.
Functional Inspection: Slide cycle endurance checks and caster load tests verify mechanical reliability prior to packaging.
Frequently Asked Questions
Q: What is the primary advantage of a tool cart with a top tray and drawers?
A: The combination provides immediate staging space on top for tools currently in use, while the lower drawers secure organized inventory, protecting sensitive instruments and hand tools from dust, impact, and loss.
Q: Can the tool cart configuration be customized for OEM/ODM projects?
A: Yes. Custom color coatings (RAL color matching), bespoke drawer divider layouts, specialized caster combinations, private-label logo plates, and tailored carton artwork are fully supported for wholesale distributors and brand owners.
Q: What is the standard Minimum Order Quantity (MOQ) for custom tool carts?
A: MOQ requirements vary based on the level of customization requested (such as custom colors or private-label packaging). Contact our sales engineering team with your project details to receive specific batch parameters.
Q: What documentation is provided with bulk shipments?
A: Commercial invoices, packing lists, bill of lading documentation, and product quality inspection reports are included with every shipment. Specific technical test certificates can be provided upon prior request.
