Zhejiang Jinhoda Industrial & Trading Co., Ltd. is one of the leading manufacturers and suppliers of tool cart with drawer dividers in China. We are committed to providing high quality customized products and OEM products with ISO certification to global clients. Please feel free to wholesale durable tool cart with drawer dividers made in China here from our factory.

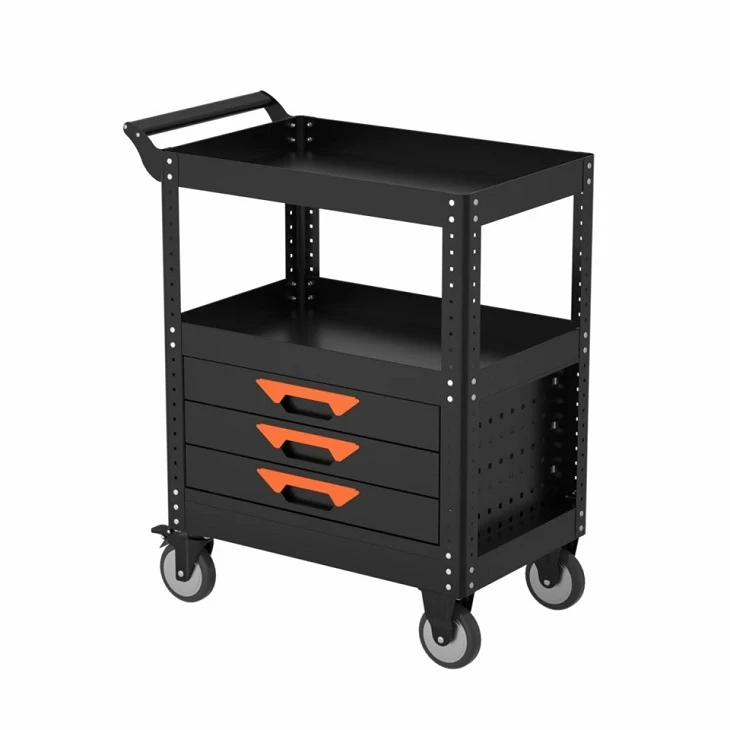

A heavy-duty tool cart equipped with drawer dividers provides structured internal storage for hand tools, sockets, wrenches, fasteners, and maintenance service parts. By segmenting drawer space into dedicated compartments, maintenance teams can minimize tool mixing, reduce retrieval times between service tasks, and maintain consistent tool control across work shifts.
Selecting the appropriate configuration requires matching internal compartment layouts, drawer load capacities, caster configurations, and overall body dimensions to the specific demands of the work environment.
Technical Specifications & Configuration Matrix
|
Specification Item |
Industrial Standard Parameter Values |
|
Product Type |
Mobile Tool Cart with Drawer Dividers |
|
Overall Dimensions (W x D x H) |
840 mm x 460 mm x 960 mm (with casters) |
|
Drawer Quantity & Layout |
7 Drawers (5x shallow: 75mm height, 2x deep: 154mm height) |
|
Internal Drawer Usable Space |
Width 568 mm x Depth 398 mm (per standard drawer) |
|
Divider Material & Configuration |
Slotted galvanized steel dividers; adjustable compartment matrix |
|
Body Steel Thickness |
1.0 mm cold-rolled steel frame and housing |
|
Drawer Slide Mechanism |
45mm width heavy-duty ball-bearing slides (100% full extension) |
|
Drawer Load Capacity |
45 kg (approx. 100 lbs) per individual drawer |
|
Total Cart Load Capacity |
400 kg (approx. 880 lbs) maximum static/dynamic capacity |
|
Caster Configuration |
5-inch x 2-inch heavy-duty TPR casters (2 fixed, 2 swivel with total-lock brake) |
|
Locking Mechanism |
Central internal cylinder lock with folding key and anti-tilt safety interlock |
|
Surface Finish & Coating |
Electrostatic powder coating (textured matte finish, UV and solvent resistant) |
Core Functional Features
Compartmentalized Drawer Dividers
Structured Storage: Organize hand tools and small parts into designated compartments to prevent shifting during transit and daily workshop use.
Visual Inventory Management: Simplified compartment layouts allow technicians to identify missing tools immediately at the end of a shift, supporting shop-floor 5S standards.
Mobile Point-of-Use Access
Service Bay Mobility: Transport frequently used tool sets directly to the vehicle lift, machine maintenance area, or assembly station.
Chassis & Mobility Options: Engineered for stable movement across typical concrete workshop floors. Caster arrangement, wheel diameter, and total load limits are selected based on floor conditions and payload weight.
Drawer Slide Performance & Usable Depth
Full-Extension Access: Precision drawer slides allow full access to tools stored at the rear of the drawer.
Load Distribution: Usable depth and rated capacity determine whether heavy pneumatic tools, socket sets, or light components can be accommodated securely.
Typical Industrial Applications
Automotive Repair & Service Bays: Organize diagnostic tool sets, hand wrenches, pneumatic accessories, and socket trays for rapid retrieval by service technicians.
Industrial Maintenance & MRO: Store replacement components, electrical testing instruments, and mechanical repair tools for facility upkeep teams.
Assembly & Production Lines: Keep specialized hand tools and assembly hardware positioned adjacent to manufacturing workcells to reduce transit time to central tool cribs.
Professional Tool Distribution: Expand an existing workshop equipment catalog with configurable, drawer-divided mobile storage options tailored for commercial resale.
Customization & Engineering Capabilities
Custom Drawer Geometries: Adjust drawer depth ratios, divider slot patterns, and internal compartment layouts to match specific tool kit programs.
Visual & Brand Customization: Custom corporate or brand color matching (RAL color system), silk-screened logos, and customized nameplates.
Accessory Integration: Options for side shelves, spray can holders, waste bins, and power strip brackets mounted to the cart chassis.
Supply Chain & Quality Assurance
To ensure batch consistency, structural reliability, and safe transit for volume orders:
Packaging Solutions: Heavy-duty corrugated export packaging, reinforced edge protection, and individual cart carton marking tailored for container loading or drop-shipping.
Quality Control Standards: Pre-shipment inspection (PSI) protocols covering dimensional checks, drawer slide cycle tests, lock security, and coating adhesion.
Sample Approval Workflow: Structured prototype development and pre-production sample sign-off procedures prior to mass manufacturing.
Frequently Asked Questions
Q: What is the primary advantage of a tool cart with drawer dividers?
A: Drawer dividers prevent hand tools, sockets, and small fasteners from shifting and mixing during mobile transport. They maximize usable drawer space and establish fixed locations for each tool, reducing technician search time and supporting tool accountability.
Q: Are the drawer dividers adjustable or removable?
A: Divider adjustability depends on the specific model series. Some configurations feature slotted panels allowing customized compartment sizing, while others utilize fixed welded configurations. Please specify your layout requirements during the quotation stage.
Q: What load capacity should I specify for heavy automotive tools?
A: For heavy diagnostic gear, pneumatic impact wrenches, and deep socket sets, specify heavy-duty drawer slides with appropriate weight ratings per drawer, paired with a reinforced cabinet frame. Always confirm that total aggregate cart load limits match your working conditions.
Q: Can manufacturing be customized for private label distribution?
A: Yes. Manufacturing services are available for commercial tool storage programs, including custom branding, tailored drawer configurations, specialized paint finishes, and customized export packaging. Please submit project requirements for technical review.
Q: What information is required to receive an accurate commercial quotation?
A: To expedite your inquiry, please provide the target model reference or drawing, estimated order quantity, destination port/market, required drawer configuration, and any specific private-label or packaging requests.
