Modular Storage Cabinet System for Workshops and Garages: JS-2302, JS-108 and JS-156
Overview
A workshop rarely stays the size it was planned for. Staff numbers change, bays are added, and a fixed cabinet line ends up wasted or too short. The HAODA modular storage cabinet system solves this by selling every cabinet as an independent module, so you can add, remove or re-order units as the site changes.
The range has three lines, all in cold-rolled steel with orange-peel powder coating: JS-2302 (full-height, corner-capable workstation), JS-108 (eight-module heavy-duty workstation) and JS-156 (compact workbench-and-cabinet set on casters). All three use the same components: lockable cabinets, full-height pegboard, drawer units and a wood or stainless steel worktop.
Key Advantages
- Module-level ordering. Wall cabinets, tall cabinets, drawer cabinets and mobile tool carts are sold separately and combine freely. Layouts can be straight-run or corner, and can be sized to shop floor area and headcount.
- Built-in utilities. Power sockets and plugs can be fitted inside cabinets. A sink or an oil-drain basin can be built into the worktop run.
- Tool and parts zoning. Full-height perforated pegboard holds hand tools. Drawers and shelves separate small and large parts.
- Secure, clean cabinets. Doors lock, and the cabinet bodies are dust-resistant and oil-resistant. Wall cabinets use dual hydraulic struts, concealed handles and an independent lock.
- Robust construction. Bodies are made from thickened cold-rolled steel, 0.7–1.0 mm. Worktops are wood or stainless steel, and every module is finished in orange-peel powder coating in your own colour and logo.
- Coating tested to standard. Coatings are tested to neutral salt spray (NSS) under GB/T 10125 / ISO 9227: 24 hours, with rust area limited to 1%. Longer test durations are available on request.
Product Lines and Specifications
JS-2302 Workstation
Worktop is 60 cm wide, in stainless steel or wood. Feet are heavy-duty stainless steel adjustable feet, in fixed or movable configurations. Load figures are not published for this line. The shown layout is the standard combination and can be extended.
|
Module |
Size (W×D×H, mm) |
|
2302G-47 |
1200×600×2100 |
|
2302G-47L (with sink, optional) |
1200×600×2100 |
|
2302G-39M |
1000×600×2100 |
|
2302G-39ZJ (corner) |
1000×770×1985 |
|
2302G-35M |
900×600×1985 |
|
2302G-25M |
660×600×1985 |
Exclusive to JS-2302: roller-shutter door cabinets and large-opening door cabinets.
JS-108 Workstation
Eight modules. Total load is 5000 kg+ distributed across the modules, and each drawer takes 45 kg+.
|
Module |
Size (W×D×H, mm) |
Package size (mm) |
|
JS-108-1 Side cabinet |
500×500×2000 |
1060×540×540 |
|
JS-108-2 Seven-drawer |
685×465×2000 |
738×517×863 |
|
JS-108-3 Five-drawer |
685×465×2000 |
730×505×740 |
|
JS-108-4 Double-door |
685×465×2000 |
730×517×865 |
|
JS-108-5 Waste-bin cabinet |
85×465×2000mm |
730×517×865 |
|
JS-108-6 Electrical cabinet |
685×465×2000 |
730×517×865 |
|
JS-108-7 Long pegboard |
685×465×2000 |
737×513×450 |
|
JS-108-8 Corner |
1015×465×2000 |
595×504×860 |
JS-156 Combination Tool Cabinet Set
Includes mobile drawer units on casters. Straight-run layout only, no corner configuration. All modules are sold separately.
|
Item |
Specification |
|
Overall size |
2360×495×2060 mm |
|
Side cabinet |
760×495×2050 mm |
|
Five-drawer cabinet |
615×330×780 mm |
|
Single-drawer cabinet |
615×330×780 mm |
|
Worktable |
1600×500×870 mm |
|
Package size |
790×530×2080 mm |
|
Net / gross weight |
127 kg / 144 kg |
|
Load-bearing |
300 kg |

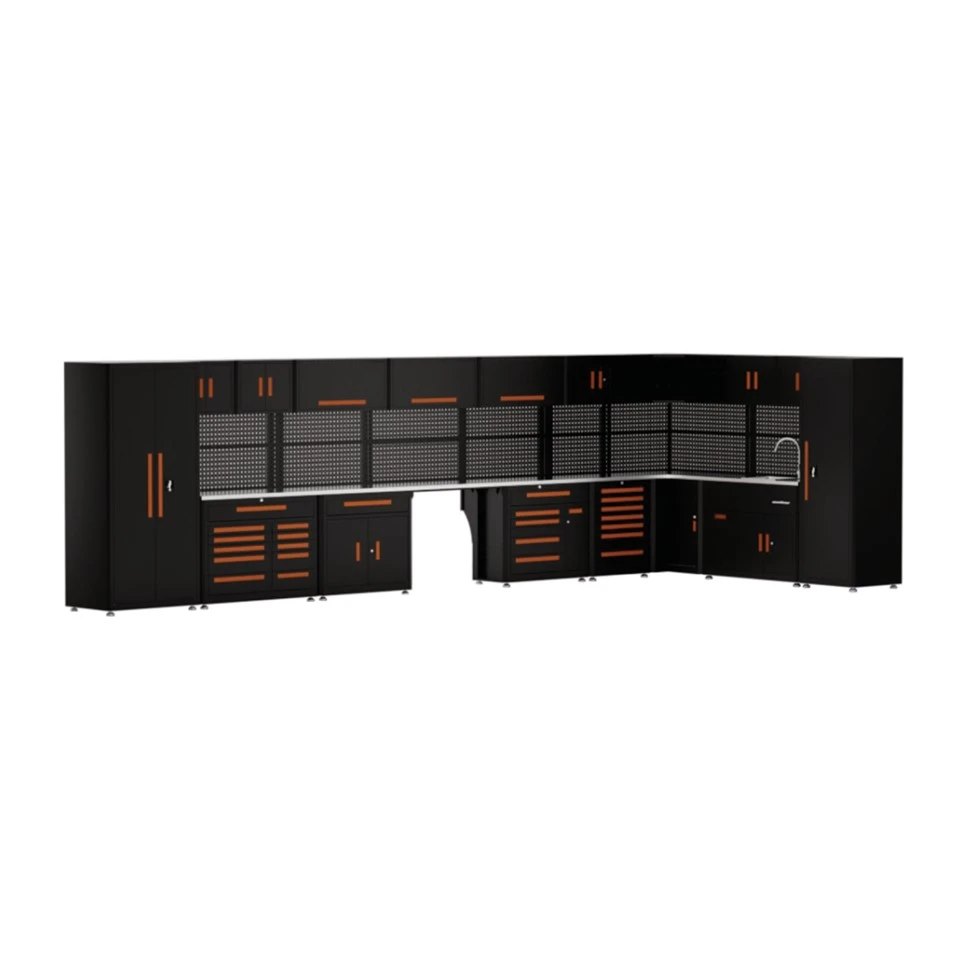

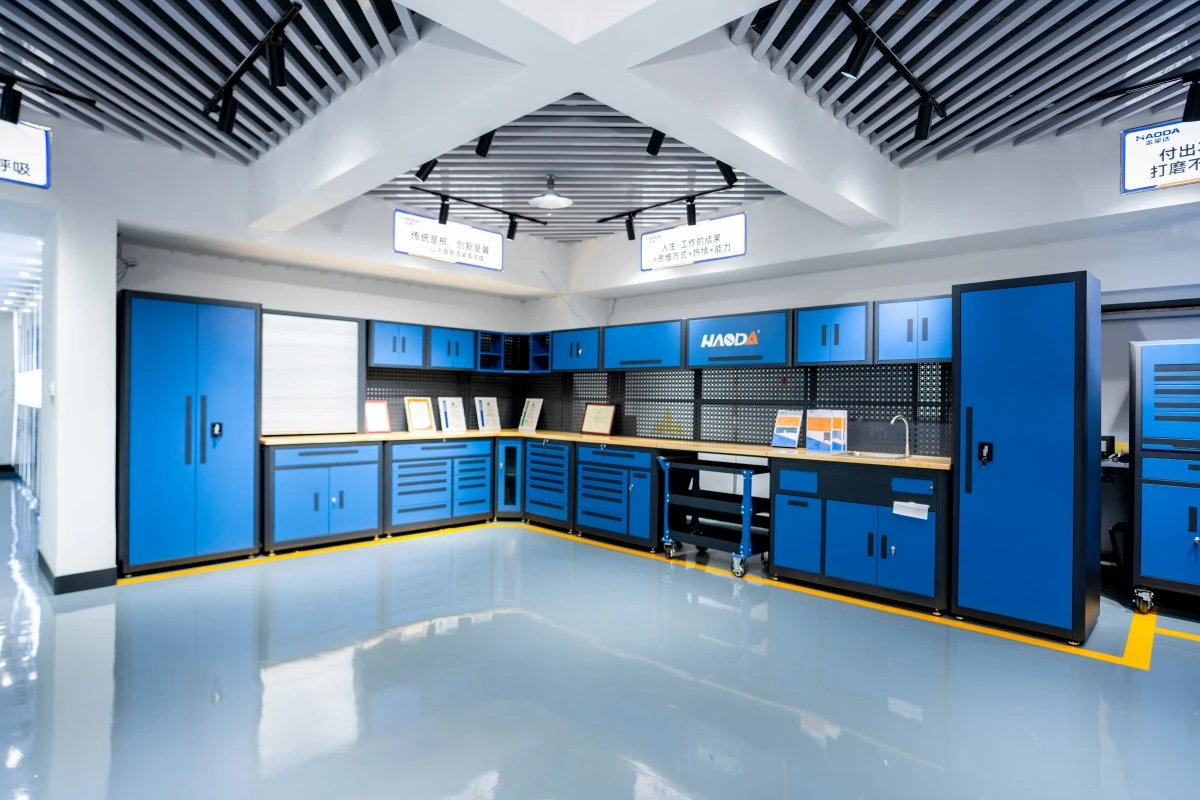

JS-2302 Workstation

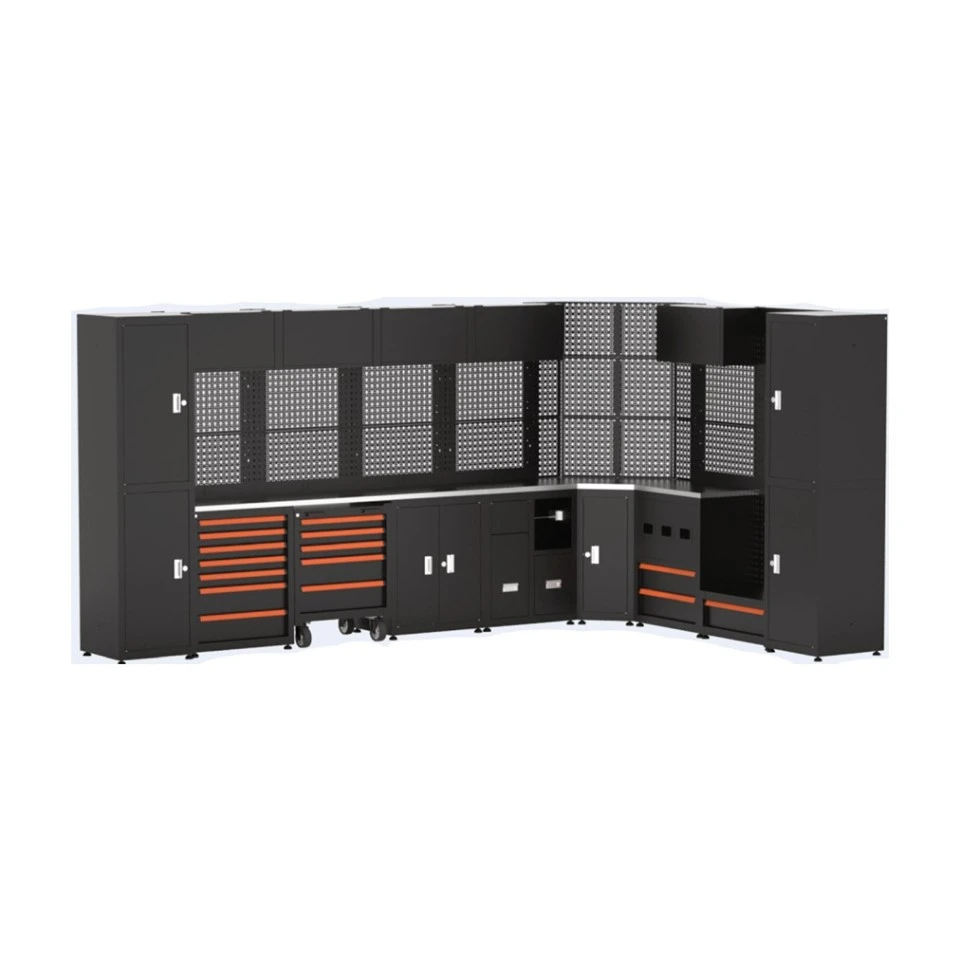

JS-108 Workstation

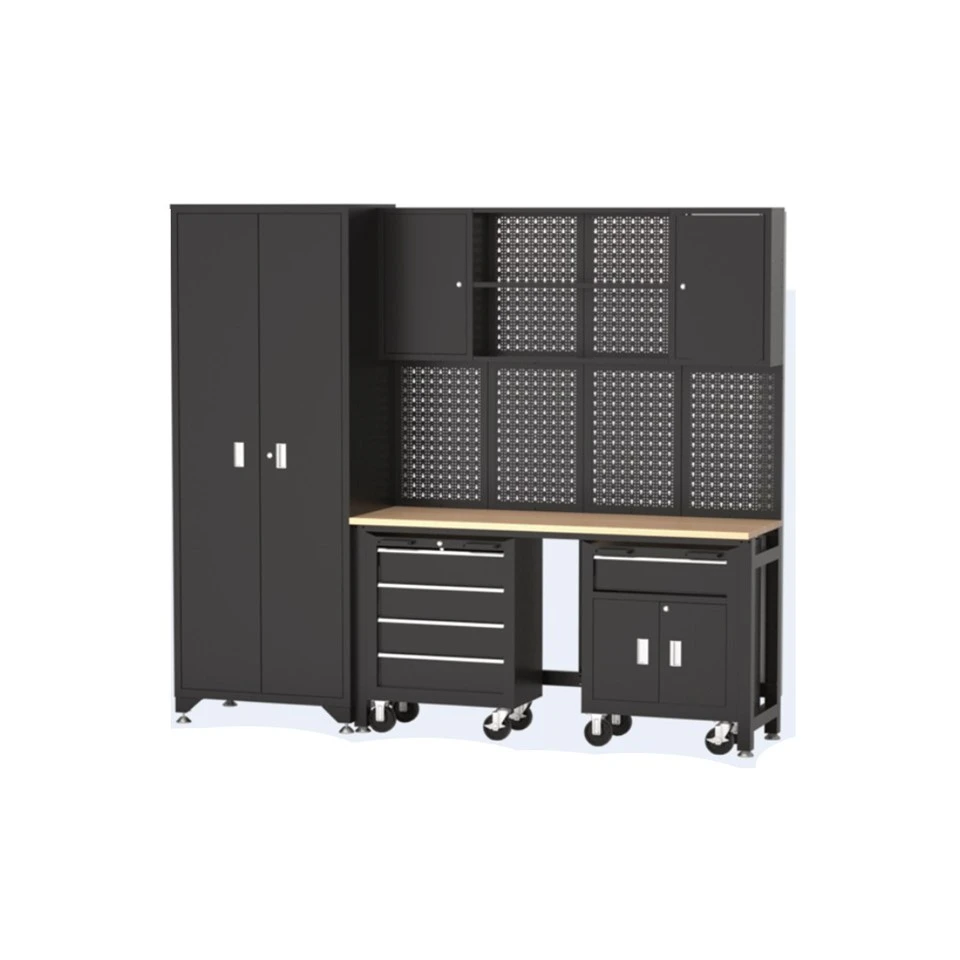

JS-156 Combination Tool Cabinet Set
Application Scenarios
Auto repair shops and 4S dealerships
A full-height modular storage cabinet system for tool control and a workbench in one continuous wall run, with a corner module to use dead space.
Factory maintenance and production floors
Parts-zoning drawers, electrical cabinet modules (JS-108) and pegboard for lean-manufacturing workstations.
Hardware retail and showroom displays
JS-156 sets work as ready-to-display combinations.
Distributors and e-commerce resellers
Modules ship separately in split cartons, so resellers can build bundles for different customers from the same stock.
Manufacturer Credentials

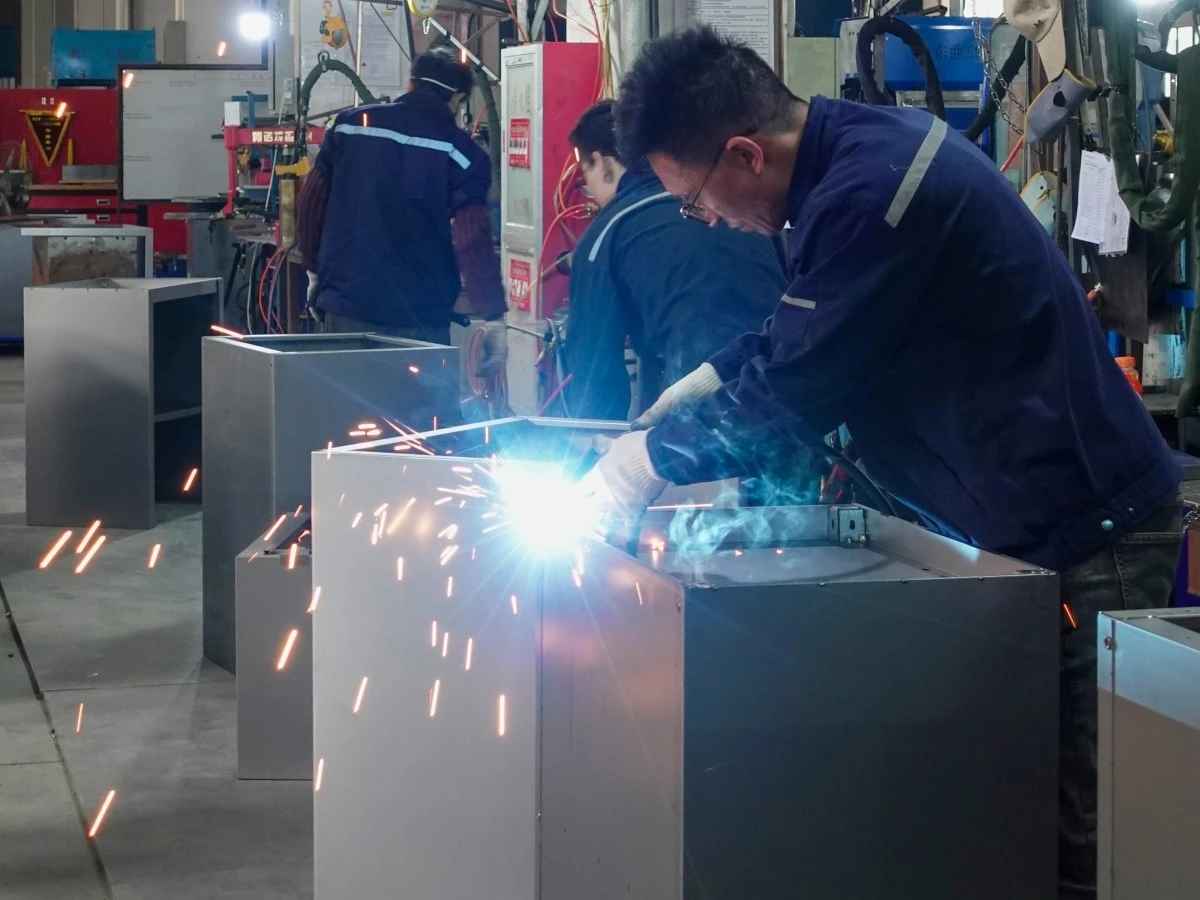

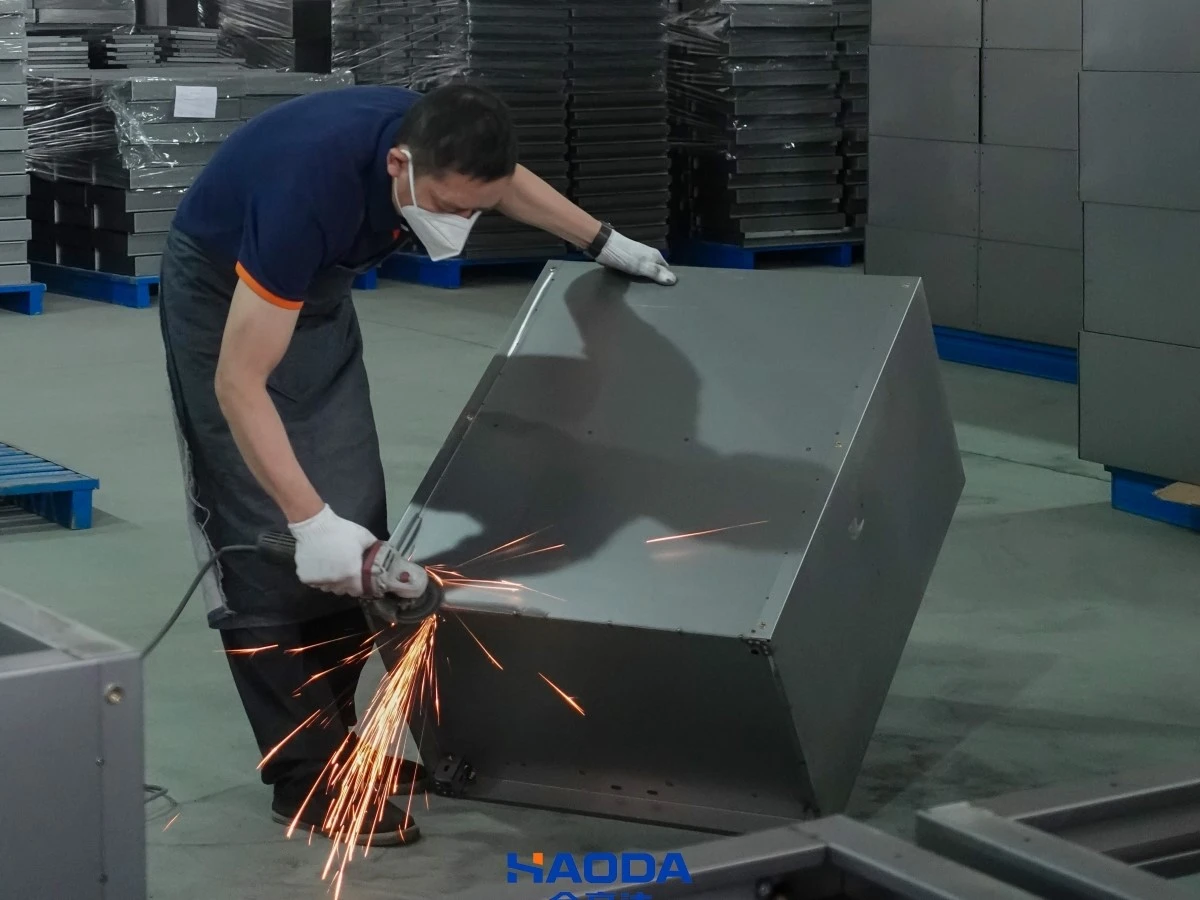

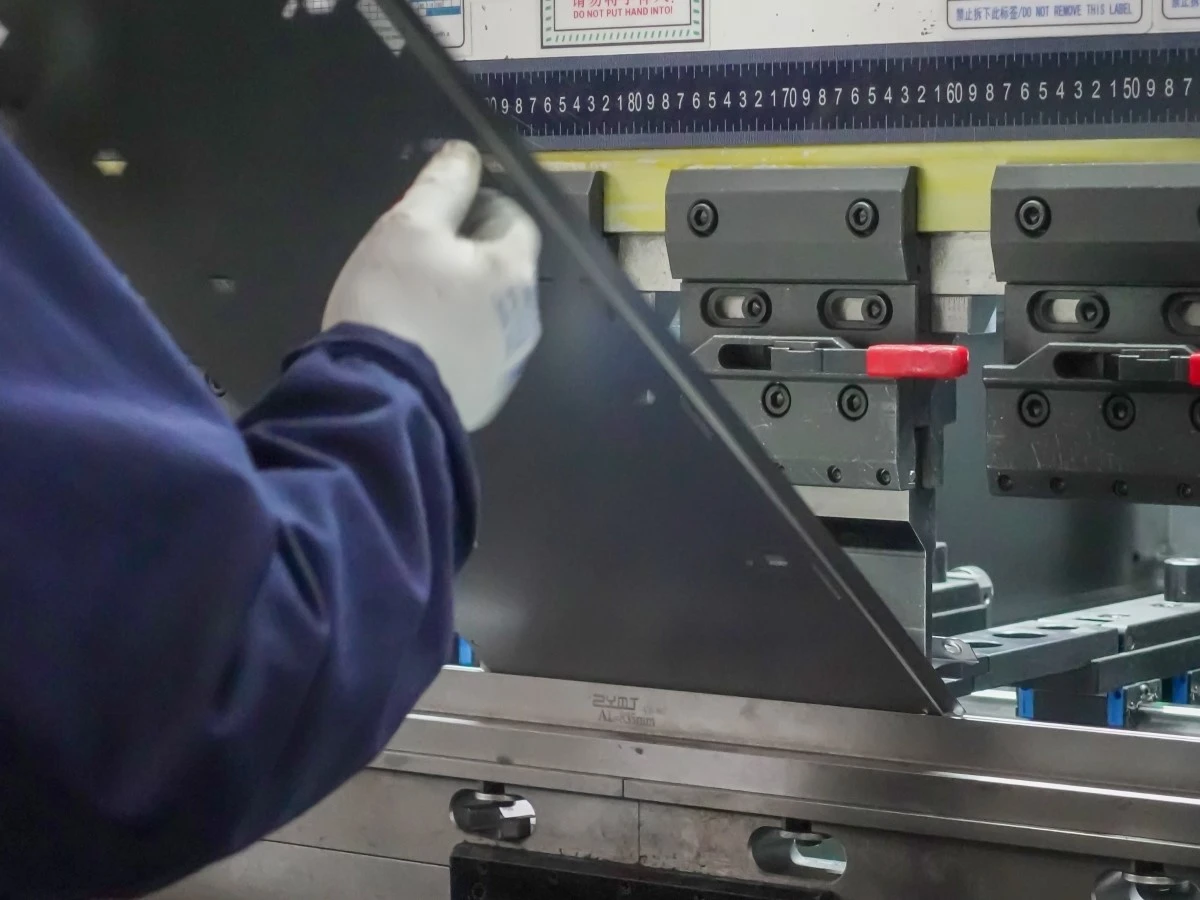

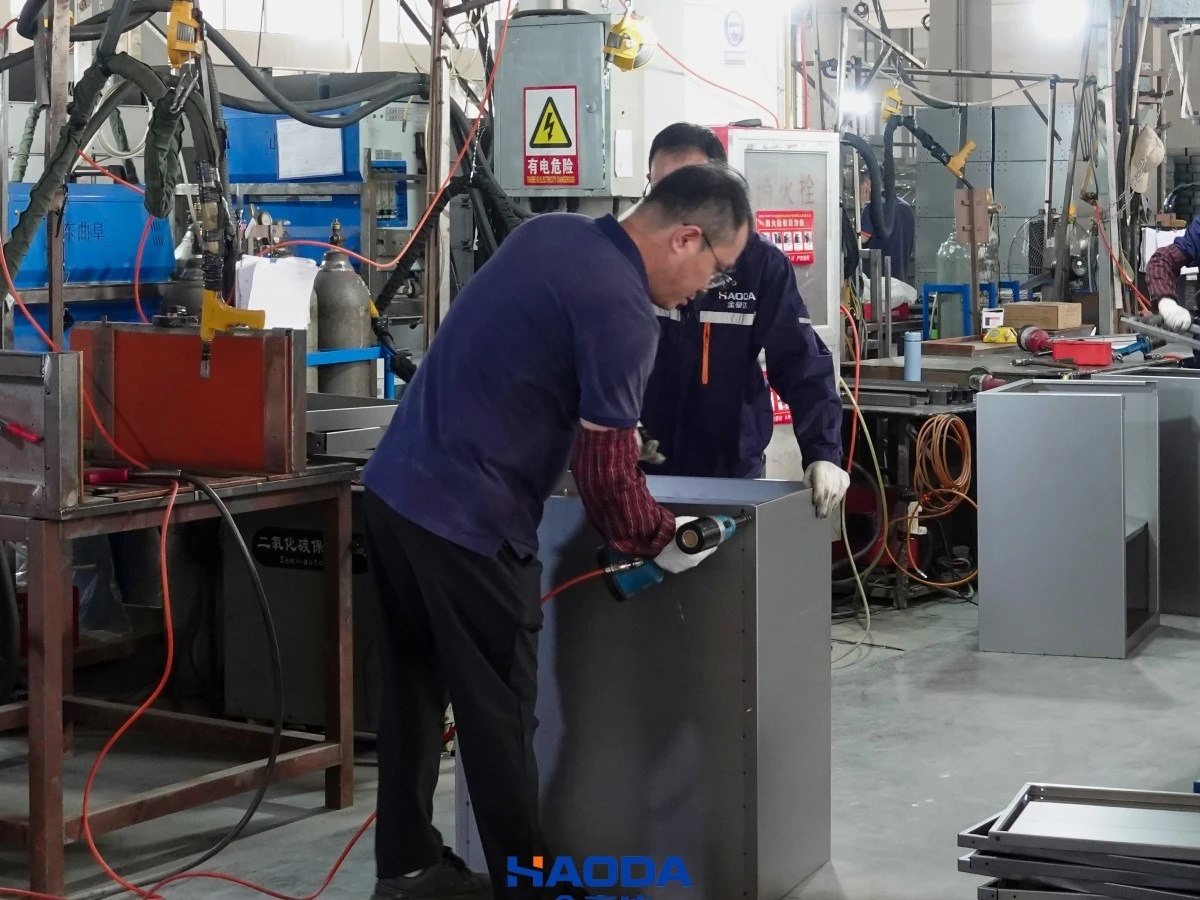

Zhejiang Jinhaoda Industrial & Trading Co., Ltd. was founded in 2008 and is a nationally recognised high-tech enterprise based in Lishui, Zhejiang. Production runs on a 33,000+ m² site with laser cutting, automatic bending, robotic welding, a digital powder-coating line and MES tracking. Every process step can be traced back to the operator. Annual capacity is over 5 million units in total across tool carts, tool boxes and workstations, and first-pass quality yield is about 98%.
Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, BSCI, Zhejiang Manufacturing certification, and an EU General Product Safety Directive declaration of conformity for workbenches. Workbench and modular tool cart designs are protected by design patents.
Ordering Terms and After-Sales
|
Item |
Terms |
|
MOQ |
20 modules in total, mixed across JS-2302, JS-108 and JS-156. The same applies to colour and logo customisation. |
|
Lead time |
Custom orders 15–30 days. Stock items depend on inventory. |
|
Trade terms |
FOB or EXW, port of Ningbo. We can help arrange a freight forwarder for delivered pricing. |
|
Payment |
T/T, 30% deposit and 70% against bill of lading. |
|
Samples |
Contact sales first. Sample fees are deductible from a subsequent bulk order. Freight is paid by the buyer. |
|
Packaging |
Standard cartons or wooden pallets. Custom packaging with your logo is available. |
|
Support |
Installation manuals and video guidance. Functional faults (lock, drawer, defective parts) are handled after receipt. Missing parts are re-shipped free, usually arriving within a month. |
Frequently Asked Questions
Q: How do I choose between JS-2302, JS-108 and JS-156 for a modular storage cabinet system?
A: Choose JS-2302 for the widest module range and corner layouts, or when you need roller-shutter doors, a sink or a large-opening cabinet. JS-108 suits heavy-duty workstations, with eight modules and a stated total load of 5000 kg+. JS-156 is a straight-run set with casters, for compact spaces.
Q: Can I add modules later or build a corner layout?
A: Yes. Modules are sold independently and can be added at any time. Corner layouts are available on JS-2302 and JS-108. JS-156 cannot be customised with a corner.
Q: Can I mix series in one order, and what is the MOQ?
A: Yes. The MOQ is 20 modules in total, mixed across the three series, and the same applies to colour and logo customisation. For samples, contact our sales team first.
Q: Are the cabinets delivered assembled, and how do I install them?
A: Modules ship in separate cartons. An installation manual and video guidance are provided. Wheels on mobile units are fitted by the customer after arrival.
Q: What if parts are missing or a drawer will not open on arrival?
A: Contact us with photos. Missing parts are re-shipped free, usually arriving within a month. Functional faults, such as a jammed drawer or a lock that will not open, are handled as after-sales cases.
Request a Quote
Send your layout, module quantities, colour and logo requirements through the inquiry form below. Our sales team will reply with a configuration and quotation.
