Complete Garage Storage Systems: JS-2302 Modular Workstation Series | HAODA
Overview
The JS-2302 is a modular steel workstation system built for buyers who want to outfit a whole bay or garage in one order. Instead of sourcing cabinets, benches and wall storage from separate suppliers, you specify one set of dimensionally matched modules. Each module shares the same 600mm depth and a common finish, so tall cabinets, drawer benches and pegboard units line up without gaps or improvised fillers. Complete garage storage systems like this cut down on mismatched parts, repeat purchasing and site rework.

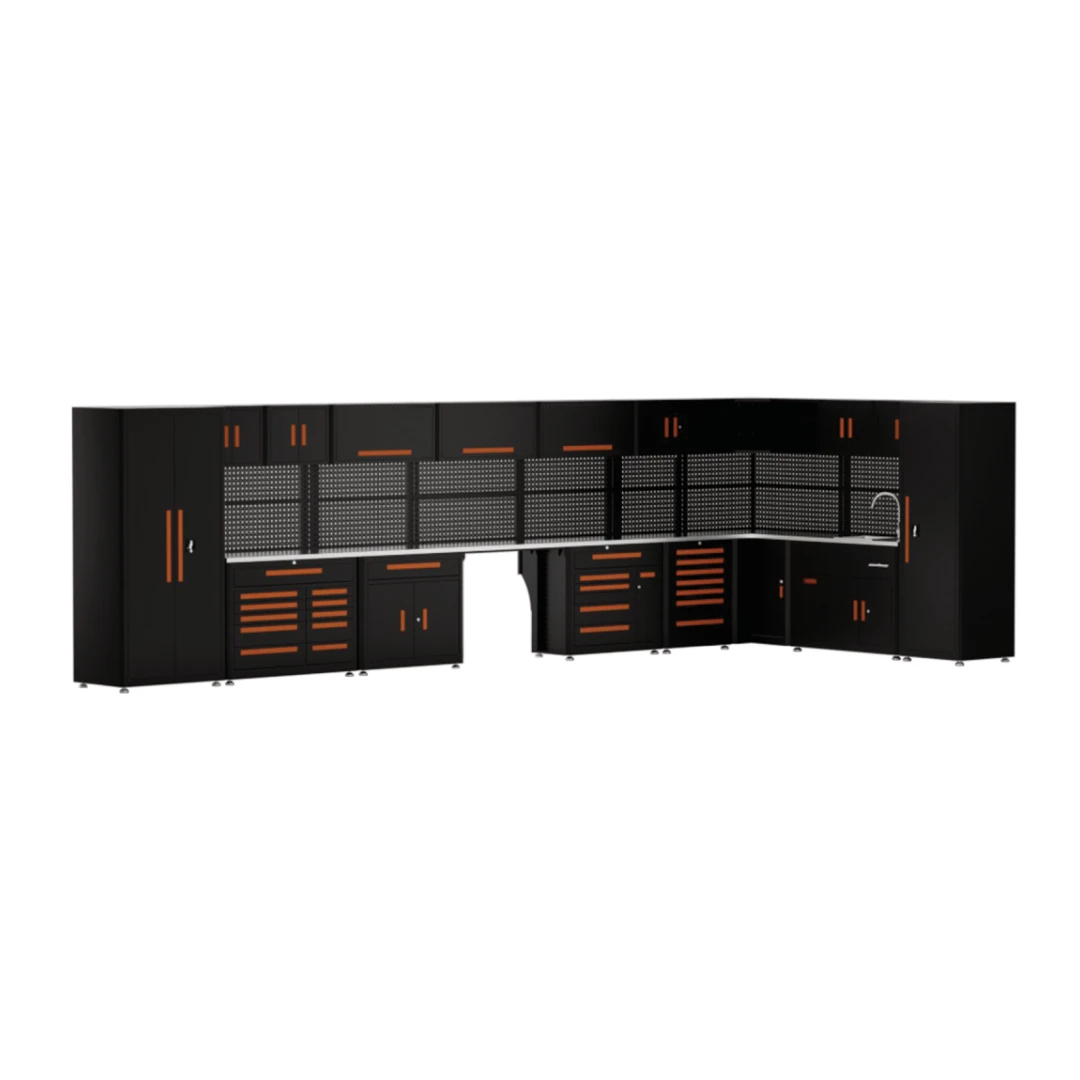

The standard combination shown on this page is a starting layout. You can extend or rearrange it from the module range below.
Key Advantages
- Configure by module. Order the modules that fit each site, then extend later with matching units.
- Choice of worktop. Stainless steel or rubberwood tops, with a sink position available on selected units.
- Adjustable heavy-duty feet. Stainless steel feet level the units on uneven floors and set the working height.
- Anti-tilt lock (optional). Available on drawer cabinets. The top lock allows only one drawer to open at a time, so a fully loaded cabinet stays stable.
- Colors on request. Powder-coat colors follow your swatch or color card.
- Patent-protected design. The 2302 DIY-combination mobile workbench holds a design patent.
- Cost-competitive. We aim to offer lower pricing than comparable European brands at similar build quality.
Application Scenarios
Auto repair shops and service bays
Wall-to-wall bench lines with drawer storage, hanging space and lockable tall cabinets.
Maintenance workshops
Fixed stations for tools, consumables and spare parts.
Distributors and e-commerce sellers
Module-based assortments that let you offer complete garage storage systems to home-garage customers as a resale set.
Tool brands and project buyers
Matching modules across multiple sites, with custom colors and logos.
Technical Specifications
|
Item |
Detail |
|
Series |
JS-2302 modular workstation |
|
Steel thickness |
0.7–1.0mm |
|
Worktop |
Stainless steel or rubberwood |
|
Support |
Adjustable stainless steel feet |
|
Safety option |
Anti-tilt drawer lock (optional, drawer cabinets) |
|
Finish |
Powder coating; salt spray test 24 h, ≤1% rust area (GB/T 10125 / ISO 9227); longer duration on request |
|
Color |
Custom, by buyer swatch |
|
Sink position |
Optional (2302G-47L) |
|
Load and slide testing |
Static and dynamic load tests, drawer slide pull tests; third-party report on request |
Module range (W × D × H, mm)
|
Model |
Size |
Model |
Size |
|
2302G-47 |
1200 × 600 × 2100 |
2302G-47L |
1200 × 600 × 2100 |
|
2302G-39M |
1000 × 600 × 2100 |
2302G-39ZJ |
1000 × 770 × 1985 |
|
2302G-39 |
1000 × 600 × 2100 |
2302G-35M |
900 × 600 × 1985 |
|
2302G-29 |
750 × 600 × 2100 |
2302G-25M |
660 × 600 × 1985 |
Manufacturing and Certifications

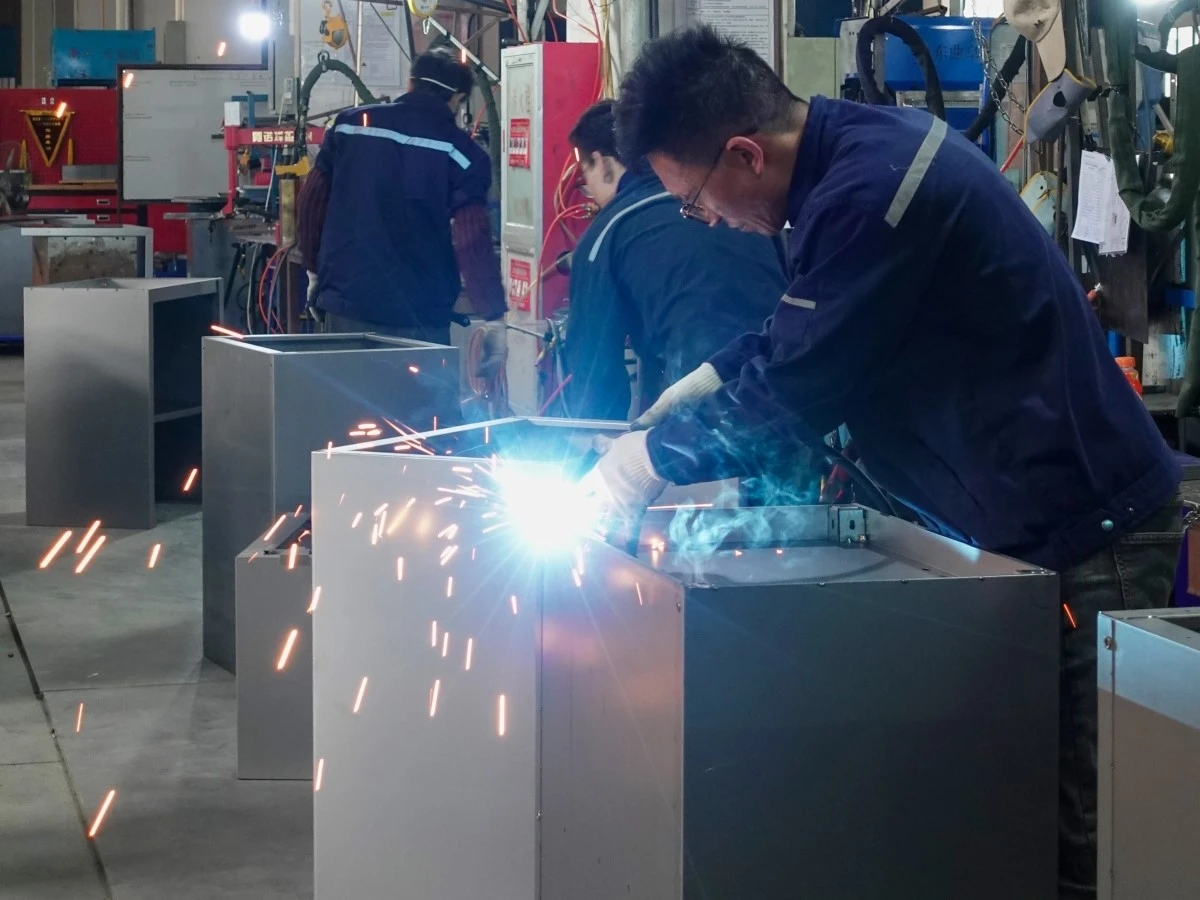

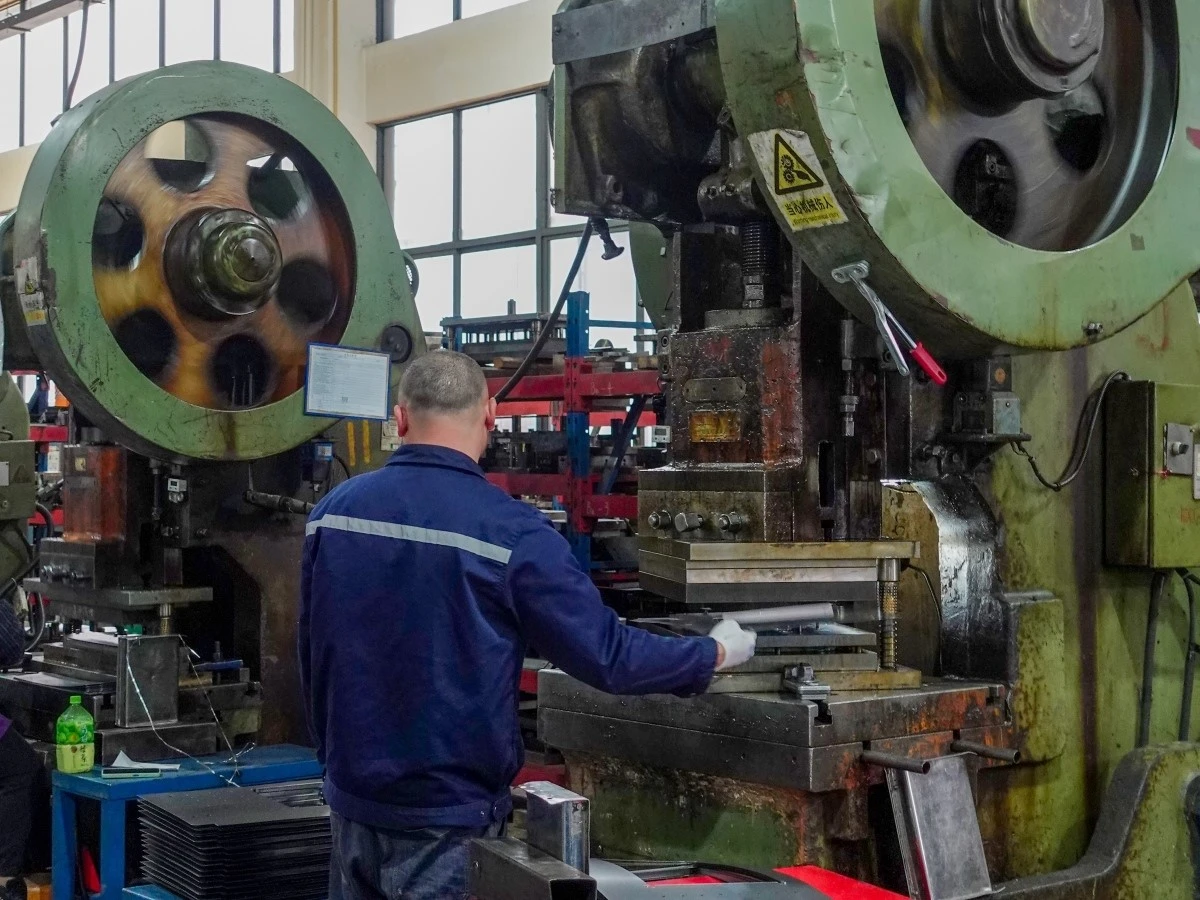

Zhejiang Jinhaoda Industrial & Trading Co., Ltd. has been manufacturing since 2008 from a 33,000+ sqm base in Lishui, Zhejiang. Production uses laser cutting, automated bending, robotic welding and powder coating. An MES system records each process step and traces it to the operator, and first-pass inspection yield is around 98%. Certifications include ISO 9001, ISO 14001, ISO 45001, BSCI and an EU GPSD declaration of conformity for tool cabinets and workbenches, plus High-Tech Enterprise and Zhejiang Manufacturing status.
FAQ
Q: 1. How do I plan a layout for complete garage storage systems?
A: Start with wall length and ceiling height. Tall units (35M, 25M) are 1985mm high and bench units are 2100mm high with pegboard. Pick the bench widths (750–1200mm) that fill the run, then add tall cabinets at the ends. Send us the room dimensions and we will help you choose the module mix.
Q: 2. What are the MOQ, lead time and payment terms?
A: The MOQ is 20 modules, counted per module, and the same applies to custom colors. Custom lead time is 15–30 days. We ship FOB or EXW from Ningbo Port on T/T terms (30% deposit, 70% against the bill of lading). A sample order is available and the sample fee can be credited against a bulk order, with freight paid by the buyer. Contact sales before ordering a sample.
Q: 3. How is the finish tested?
A: Coatings undergo neutral salt spray testing (GB/T 10125 / ISO 9227) with a 24-hour standard and a maximum rust area of 1%. Longer test times can be arranged on request.
Q: 4. How are the units shipped and installed?
A: Modules ship separately in split cartons. An installation manual and video come with the order.
Q: 5. What if a part is missing or a drawer jams?
A: Missing parts are reshipped free of charge, usually within one month. Functional problems such as a stuck drawer or a lock that will not open are handled after delivery. These products carry no formal warranty period.
Request a Quote
Tell us your site size, module quantities and color requirements through the inquiry form, and our team will respond with a matched module list and quotation.
