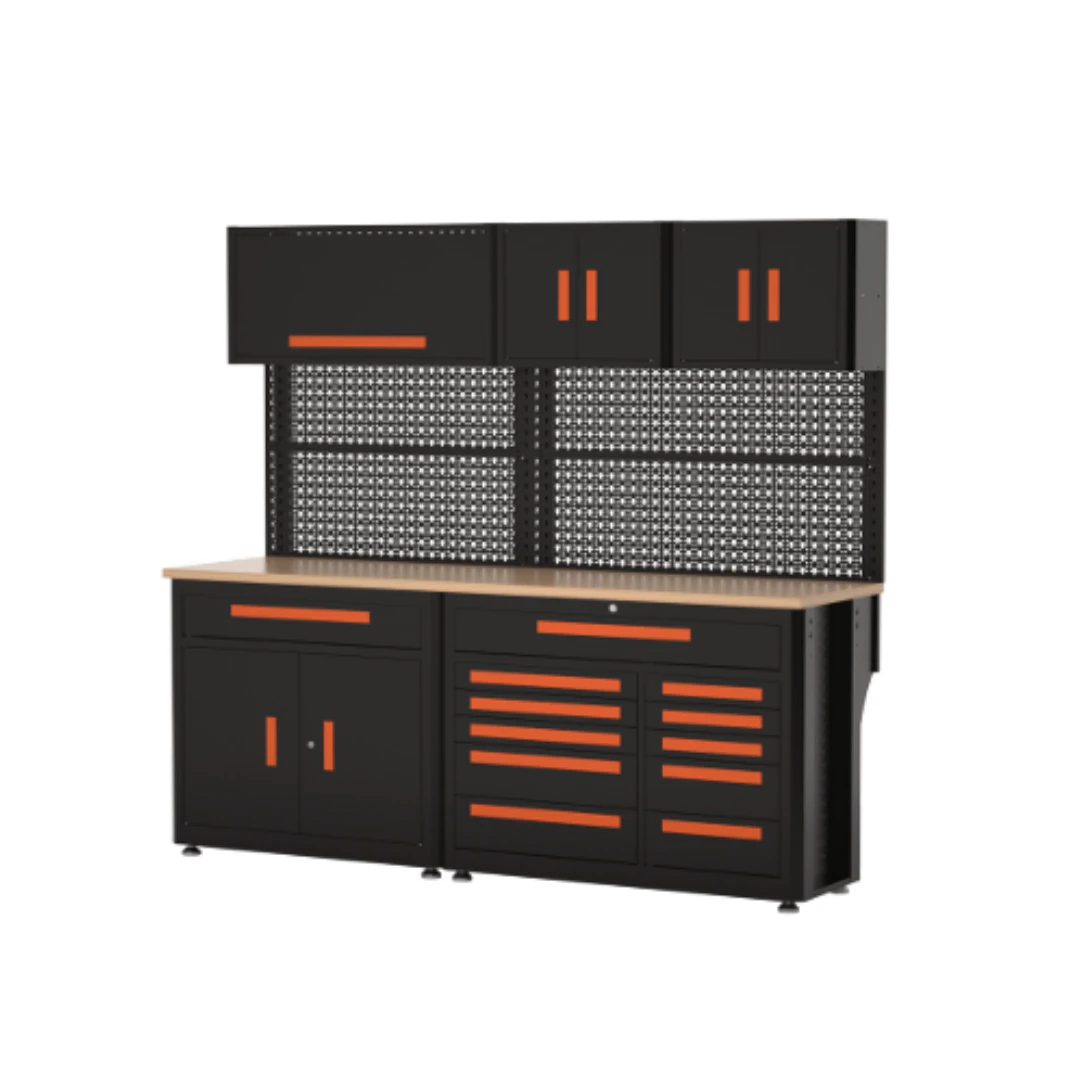

Wall to Wall Garage Cabinets – 2302-A Modular Workstation Set (2200 × 600 × 2100 mm)
Overview
The HAODA 2302-A is a ready-configured garage and workshop workstation: two full-height modules (2302G-47 and 2302G-39M) joined into one 2200 mm run. It combines wall cabinets, pegboard, a working surface and drawer storage in one line-up, replacing the separate benches, carts and wall units that usually clutter a shop floor.
The set works as a starting block for wall to wall garage cabinets. Additional modules can be added to extend the run along the entire wall, or to turn a corner, so one specification can serve a compact bay or a full-length workshop wall.
Why Buyers Specify the 2302-A
1. One-model, two-module logic.
The set is built from two catalogued modules. You can order the standard 2302-A layout, or use the same modules as building blocks for a longer or corner layout, without changing the product family.
2. Tools sorted by frequency of use.
11 drawers on the right base cabinet hold daily tools; full-height pegboards keep frequently used tools in sight; lockable wall and base cabinets store parts and consumables away from dust and oil.
3. Working surface on the run.
A rubberwood worktop, with stainless steel as an option, sits between the wall and base cabinets, so tasks are done at the storage line.
4. Built for workshop conditions.
Cold-rolled steel body at 0.7–1.0 mm, orange-texture powder coating, adjustable feet for uneven floors. Coating is checked by neutral salt spray testing (GB/T 10125 / ISO 9227), with a 24-hour minimum test and longer durations available on request.
5. Configurable to your channel.
Colors are customizable from a customer-supplied color card, and sockets can be configured inside the cabinets. An optional sink version (2302G-47L) is available.
Set Composition
|
Module |
Size (W × D × H) |
Contents |
|
2302G-39M |
1000 × 600 × 2100 mm |
Wide wall cabinet, full-height pegboard, base with 1 drawer and double-door cabinet |
|
2302G-47 |
1200 × 600 × 2100 mm |
2 double-door wall cabinets, full-height pegboard, base with 1 top drawer and 10 drawers |
|
2302-A (set) |
2200 × 600 × 2100 mm |
Both modules on a shared worktop line |
Applications
Auto repair shops and 4S service bays
A continuous wall to wall garage cabinets line keeps tools, parts and a work surface along one wall, leaving the floor clear for vehicles.
Factory maintenance and tooling rooms
Modules can be sized to the number of technicians and the wall length available.
Distributor and e-commerce programs
The set ships as separate modules and can be sold as a full package or as individual modules for customers to expand.
Home and hobby garages (through resale channels)
The same modules scale down to a single bay.
Technical Specifications
|
Item |
Specification |
|
Model |
2302-A (2302G-47 + 2302G-39M) |
|
Overall size |
2200 × 600 × 2100 mm |
|
Wall cabinets |
1 wide cabinet + 2 double-door cabinets |
|
Base cabinets |
Left: 1 drawer + double-door cabinet; right: 1 top drawer + 10 drawers (11 drawers) |
|
Back panel |
2 full-height pegboards |
|
Worktop |
Rubberwood; stainless steel optional |
|
Body material |
Cold-rolled steel, 0.7–1.0 mm |
|
Finish |
Orange-texture powder coating; other colors on request |
|
Locking |
Lockable doors |
|
Leveling |
Adjustable feet |
|
Options |
Cabinet sockets; sink version (2302G-47L); corner and straight layouts |
|
Packing |
Separate modules in split cartons; installation manual and video provided |
Manufacturer Background

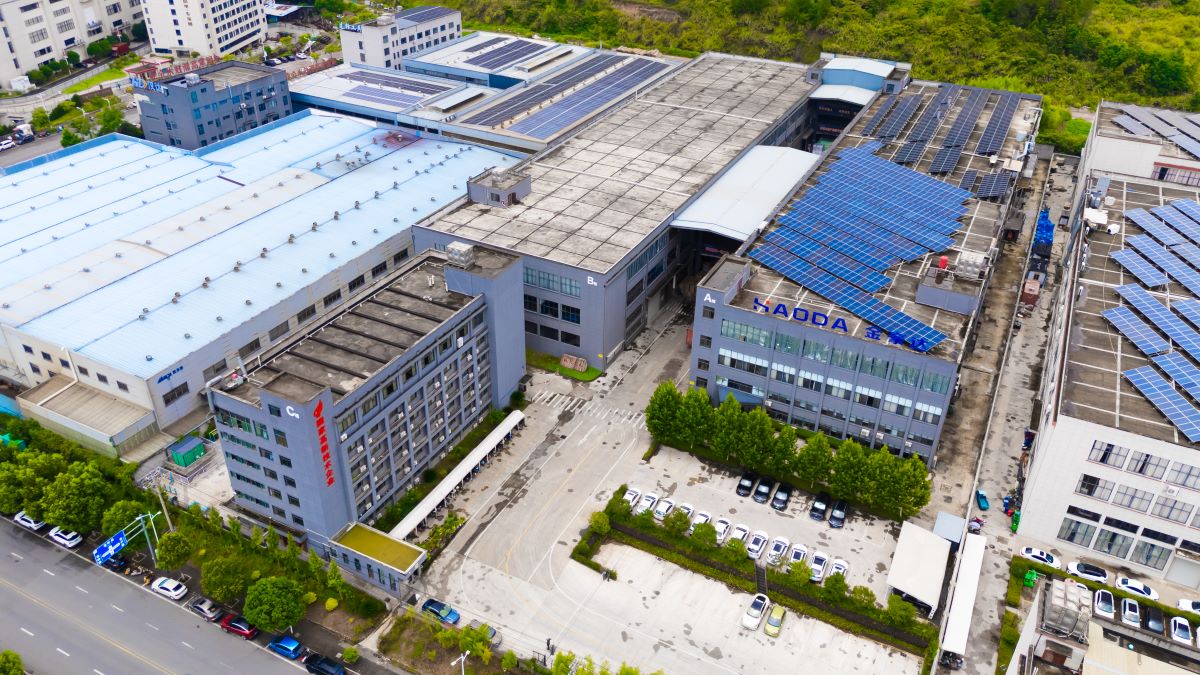

Zhejiang Jinhaoda Industrial & Trading Co., Ltd. has made tool carts, workstations and storage cabinets since 2008 in Lishui, Zhejiang, on a 33,000+ m² site. Laser cutting (±0.1 mm), automated bending, robotic welding, digital powder-coating lines and an MES record system support an annual output of over 5 million units (tool boxes, tool carts and workstations combined). Each process step is inspected and traceable to the operator, and first-pass yield is around 98%. We export to Europe, North America and Australia.
Frequently Asked Questions
Q: 1. How do I plan wall to wall garage cabinets for my wall length?
A: Measure the usable wall length and send it with your layout preference. The 2302-A occupies 2200 mm; further modules in the 2302G family (from 660 mm to 1200 mm wide) can be added to extend along the entire wall, or arranged as corner or straight runs. There is no fixed limit on the number of modules.
Q: 2. What is the MOQ, and can color or layout be customized?
A: MOQ is counted in modules: 20 modules, the same for color customization. The 2302-A contains two modules. Colors follow the color card you supply. Custom lead time is 15–30 days. Contact sales before ordering a sample.
Q: 3. How is the set shipped, and how long does installation take?
A: It ships as separate modules in split cartons, so pallets can be planned by module. An installation manual and video guide the assembly. We quote FOB or EXW from Ningbo Port on T/T terms (30% deposit, 70% against bill of lading), and can help arrange a freight forwarder for CIF or door-to-door.
Q: 4. Which certifications can you provide for European buyers?
A: We hold ISO 9001, ISO 14001, ISO 45001, BSCI, and an EU General Product Safety conformity declaration for workbenches. We also hold utility-model and design patents and Zhejiang Manufacturing certification. Static and dynamic load tests can be carried out, and a third-party report is available on request.
Q: 5. What if a part is missing or a drawer does not operate on arrival?
A: Report it with photos. Missing parts are re-sent free of charge, usually arriving within a month. Functional faults such as locks or drawers that do not open are handled by our after-sales team.
Request a Quote
Send your wall length, required layout and target quantity through the inquiry form below. Our sales team will reply with a configuration drawing and quotation for your wall to wall garage cabinets project.
