Zhejiang Jinhoda Industrial & Trading Co., Ltd. is one of the leading manufacturers and suppliers of tool cart with removable tray in China. We are committed to providing high quality customized products and OEM products with ISO certification to global clients. Please feel free to wholesale durable tool cart with removable tray made in China here from our factory.

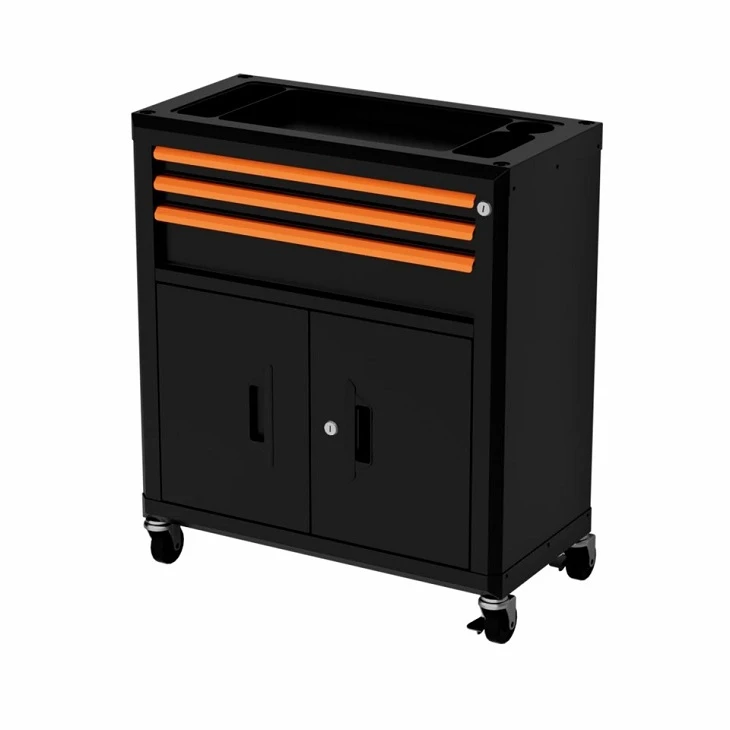

Optimize tool organization and improve workflow efficiency at the service bay. The Tool Cart with Removable Tray is engineered for automotive repair shops, manufacturing plants, and industrial maintenance facilities requiring frequent relocation of hand tools, fasteners, and diagnostic components.
Integrating a secure, detachable upper tray with a rigid lower storage body, this mobile cart allows operators to bring essential parts directly to the point of work while maintaining bulk storage capacity below.
Technical Specifications
|
Specification Category |
Standard Industrial Configuration |
|
Product Name |
Tool Cart with Removable Tray |
|
Model / Series |
HD-RTC Series |
|
Overall Dimensions (W x D x H) |
Standard: 700mm x 450mm x 850mm (Custom dimensions available) |
|
Primary Material |
Premium Cold-Rolled Steel (CRS) |
|
Material Thickness |
0.8mm – 1.2mm (Body and Shelves) |
|
Surface Finish |
Industrial Grade Electrostatic Powder Coating (Anti-corrosion, oil-resistant) |
|
Total Load Capacity |
Up to 300 kg (Distributed load, depending on caster specification) |
|
Tray Load Capacity |
Up to 50 kg (Independent removable tray rating) |
|
Caster Specifications |
2 Swivel with Brakes, 2 Rigid; PU/TPR Material (Diameter: 100mm / 125mm) |
|
Standard Colors |
Industrial Red, Matte Black, RAL Blue (Custom corporate colors available) |
Key Engineering & Structural Features
Precision-Engineered Removable Tray System
Detachable Configuration: The top tray lifts off effortlessly for direct transfer of active tool sets to machinery or vehicle repair zones.
Secure Retention Interface: Designed with a stable resting geometry to prevent shifting, rattling, or accidental dislodgement during transit across uneven workshop flooring.
Dual-Function Utility: Serves simultaneously as the upper work surface of the cart and an independent portable parts tray.
Heavy-Duty Cold-Rolled Steel Construction
Material Integrity: Fabricated from industrial-grade cold-rolled steel (CRS) sheets, ensuring high tensile strength and structural rigidity under daily heavy use.
Optimized Wall Thickness: Wall and shelf thickness ranging from 0.8mm to 1.2mm prevents structural flexing under maximum rated loads.
Surface Protection: Finished with an electrostatic industrial powder coating, providing high resistance to automotive fluids, machine oils, solvents, scratching, and corrosion.
Mobility and Load-Bearing Stability
Caster Configuration: Equipped with high-load industrial casters (4-inch or 5-inch diameter), featuring a combination of fixed, swivel, and total-lock brakes for precise maneuvering and secure stationary positioning.
Wheel Materials: Heavy-duty polyurethane (PU) or thermoplastic rubber (TPR) wheels absorb floor vibrations, protect concrete surfaces, and resist debris accumulation.
Low Center of Gravity: Engineered stability prevents tipping when fully loaded and moving through narrow aisles.
Manufacturing & Quality Assurance
Production consistency is maintained through a controlled, multi-stage manufacturing workflow:
Laser Cutting & CNC Bending: High-precision sheet metal processing ensures accurate dimensions, tight joints, and uniform structural alignment.
Robotic & Shielded Welding: Provides strong, continuous penetration joints across high-stress load-bearing points.
Surface Pre-Treatment & Curing: Multi-stage chemical cleaning precedes electrostatic powder spraying and thermal curing to guarantee coating adhesion and long-term corrosion resistance.
Pre-Shipment Inspection: Batches undergo dimensional checks, load testing on casters, assembly fit verification, and drop-test packaging audits.
Typical Industrial Applications
Automotive Repair & Service Bays: Positioning specialized diagnostic tools, pneumatic accessories, and frequently used wrenches directly beside the lift or vehicle.
Industrial Maintenance & MRO: Transporting maintenance kits, lubrication tools, and replacement hardware across large manufacturing floors.
Precision Assembly Workstations: Organizing small fasteners, components, and hand tools neatly during repetitive manufacturing or sub-assembly tasks.
Equipment Distribution Catalogs: Expanding product portfolios with high-demand, functional mobile storage solutions.
Frequently Asked Questions
Q: Can the removable tray support heavy hand tools independently?
A: The removable tray is engineered from reinforced steel to support standard hand tool sets and component bins up to its rated capacity. Ensure it is not overloaded beyond its specific weight limit when carried manually.
Q: What is the Minimum Order Quantity (MOQ) for custom colors or branding?
A: MOQ varies depending on specific customization requirements, such as custom RAL color powder coating or laser-etched logo panels. Standard catalog configurations support flexible initial order quantities for evaluation.
Q: How is the product packaged for international shipping?
A: Units are packed as knocked-down or fully assembled structures in reinforced 5-layer export cartons with high-density protective foam padding to prevent transit damage during sea or air freight. Customized drop-test packaging is available upon request.
