Product Introduction

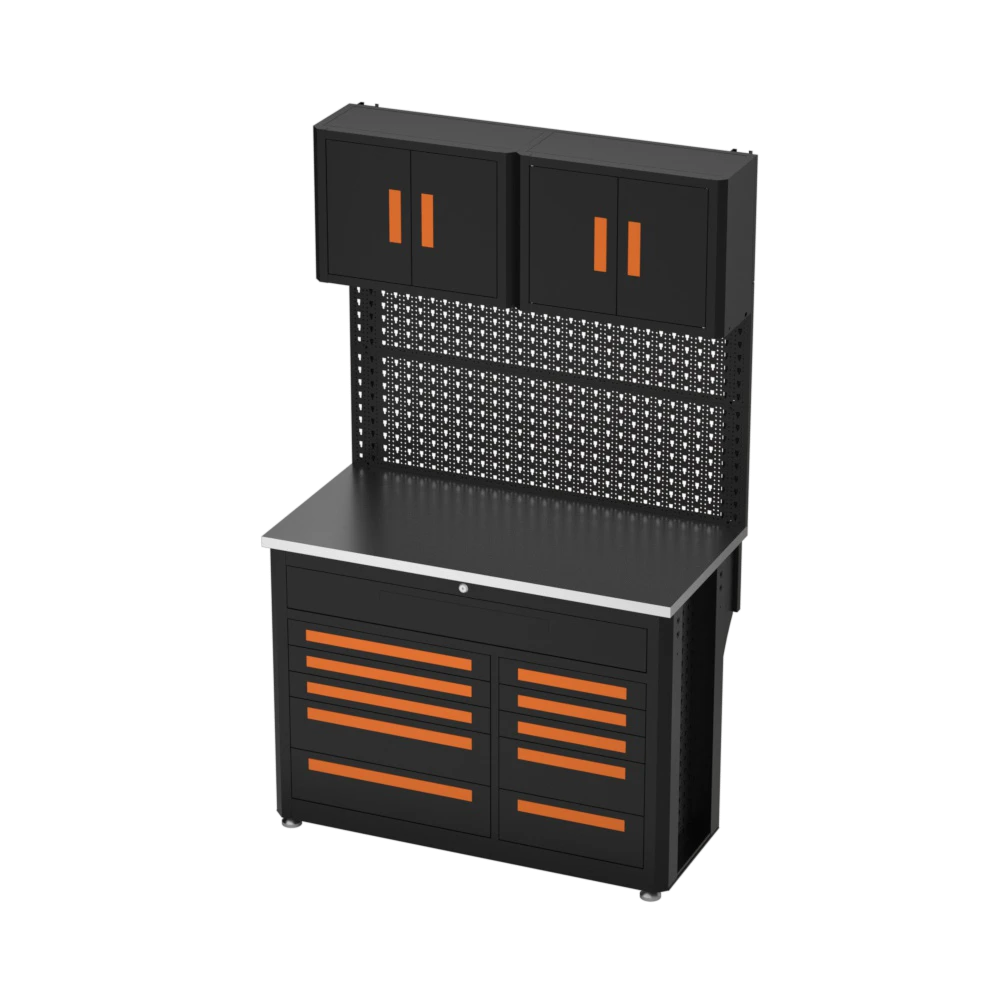

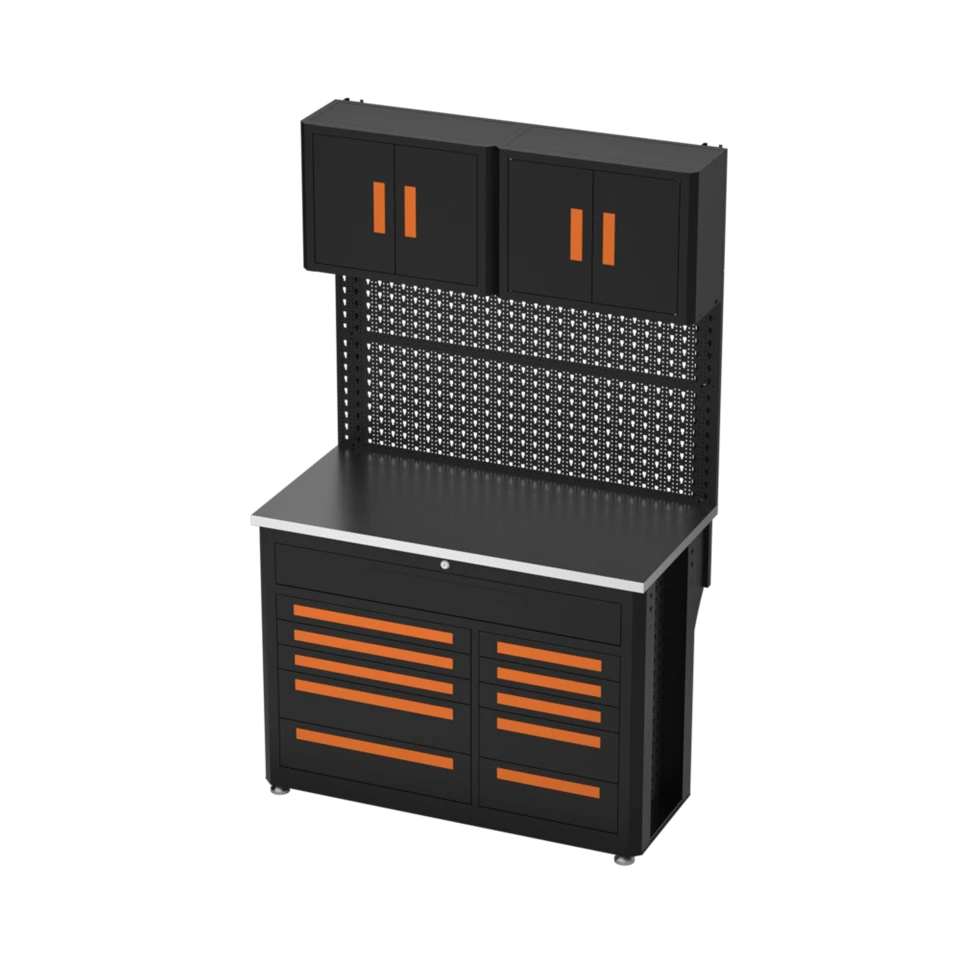

The 2302G-47 is a single-bay workstation that stacks three storage functions in a 1200 × 600 × 2100 mm footprint: lockable wall cabinets overhead, a full-height pegboard at eye level, and a 10-drawer base cabinet under the worktop. Buyers who source garage storage cabinets with doors and shelves usually want to keep loose tools, small parts and consumables off the bench without spreading them across separate furniture. This unit does that on one wall, with the pegboard and drawer zones handling the open-storage role.
It is one module of the HAODA 2302G series, so it can stand alone or be extended into a longer line.
Key Advantages
- Modular by design. Tall cabinets, wall cabinets, drawer cabinets and tool carts can be combined freely. Straight-line and corner layouts are both available, and module count can be scaled to the shop's floor area and headcount.
- Storage zoned by part size. The full-height pegboard carries hand tools; the ten drawers separate large and small parts.
- Thickened cold-rolled steel body with an orange-texture powder-coat finish.
- Lockable doors protect tools from theft and keep dust and oil mist out of the cabinet interior.
- Impact-resistant worktop. Rubberwood is standard; stainless steel is an option on the same model.
- Power-ready. Sockets and plugs can be integrated inside the cabinets on request.
Application Scenarios
Auto repair shops and 4S workshops
One bay per technician, with drawers for fasteners and service tools and the pegboard for daily-use hand tools.
Industrial maintenance and MRO rooms
Locked wall cabinets for controlled tool issue.
Distributors and e-commerce sellers
A catalogue-ready set of garage storage cabinets with doors and shelves for home-garage and small-workshop customers, supplied as split modules that suit resale packaging.
Multi-bay facilities
Extend along a wall or around a corner by adding modules rather than replacing the layout.
Technical Specifications
|
Item |
Specification |
|
Model |
2302G-47 |
|
Overall size (W × D × H) |
1200 × 600 × 2100 mm |
|
Wall cabinets |
2 units, each with double doors, lockable |
|
Base cabinet |
1 drawer cabinet, 10 drawers (left and right) |
|
Back panel |
Full-height pegboard |
|
Worktop |
Rubberwood (standard) or stainless steel (optional) |
|
Body material |
Thickened cold-rolled steel, 0.7–1.0 mm |
|
Finish |
Orange-texture powder coating; custom colors from customer's color card |
|
Options |
Integrated sockets/plugs; straight-line or corner layout |
|
In-house tests |
Static and dynamic load, salt spray, drawer slide pull-cycle, drop test |
Factory and Certifications

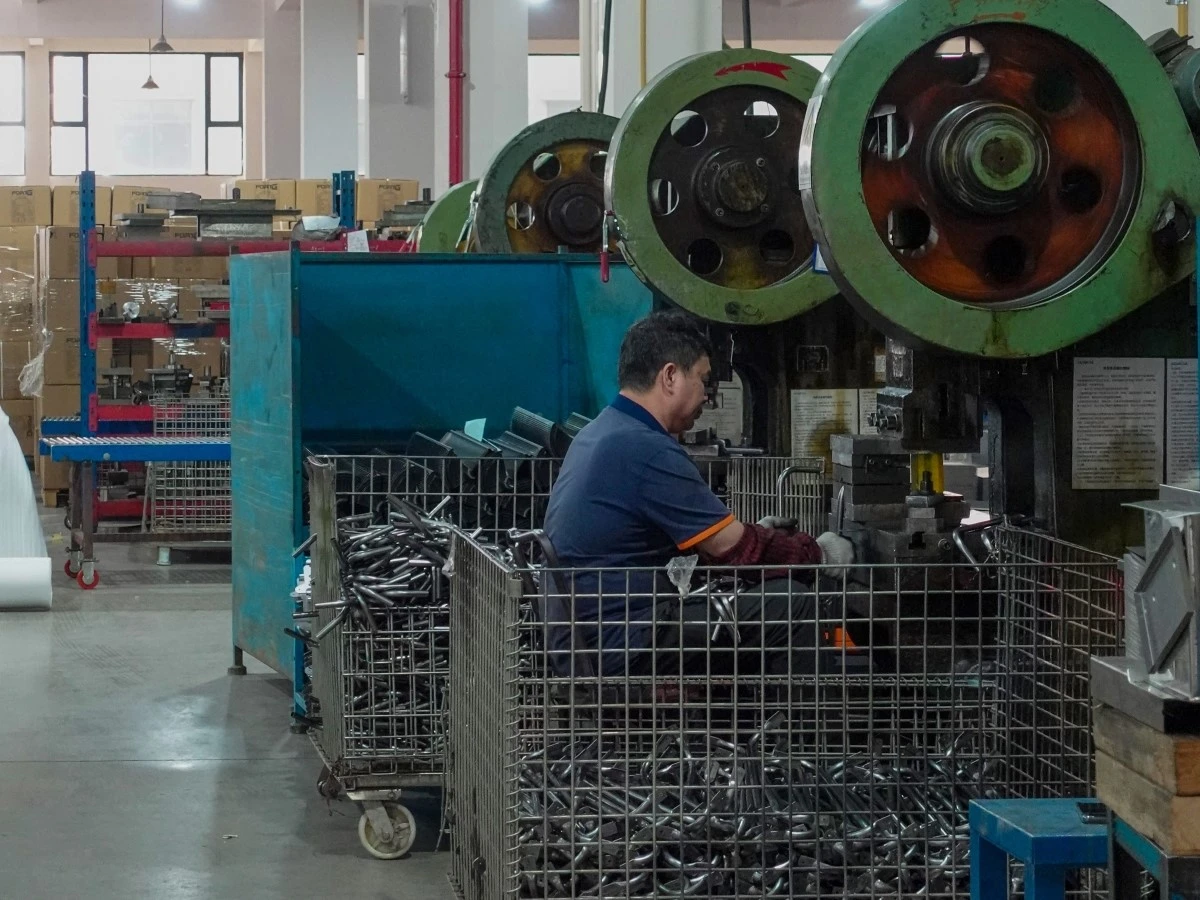

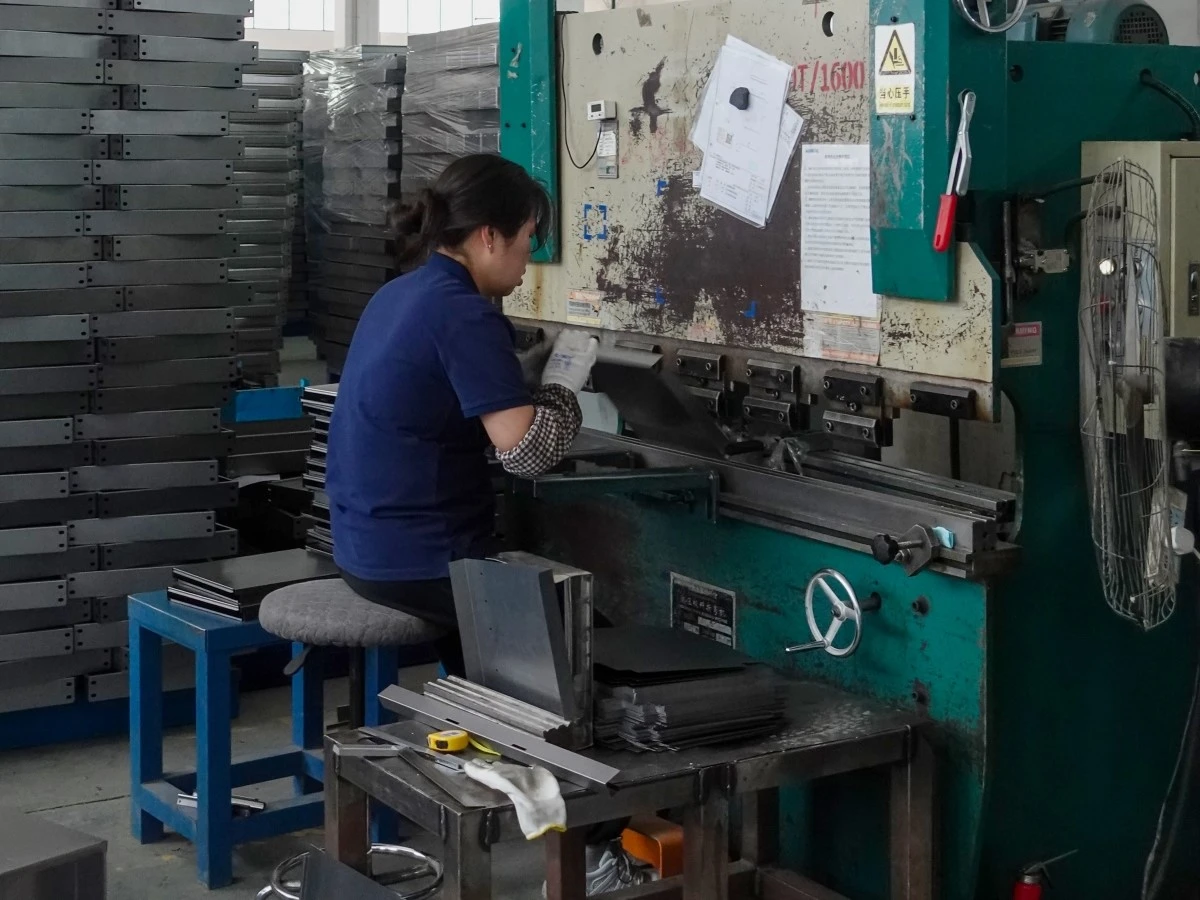

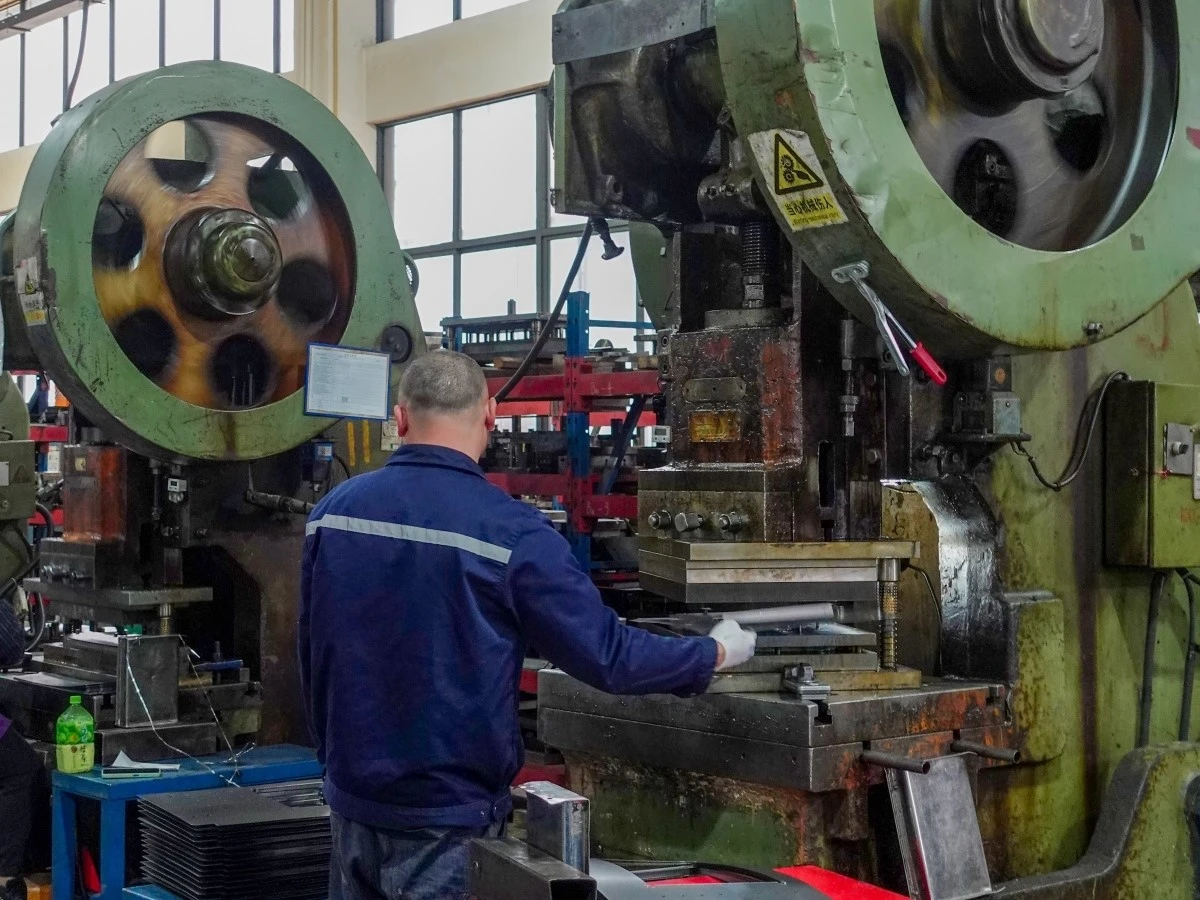

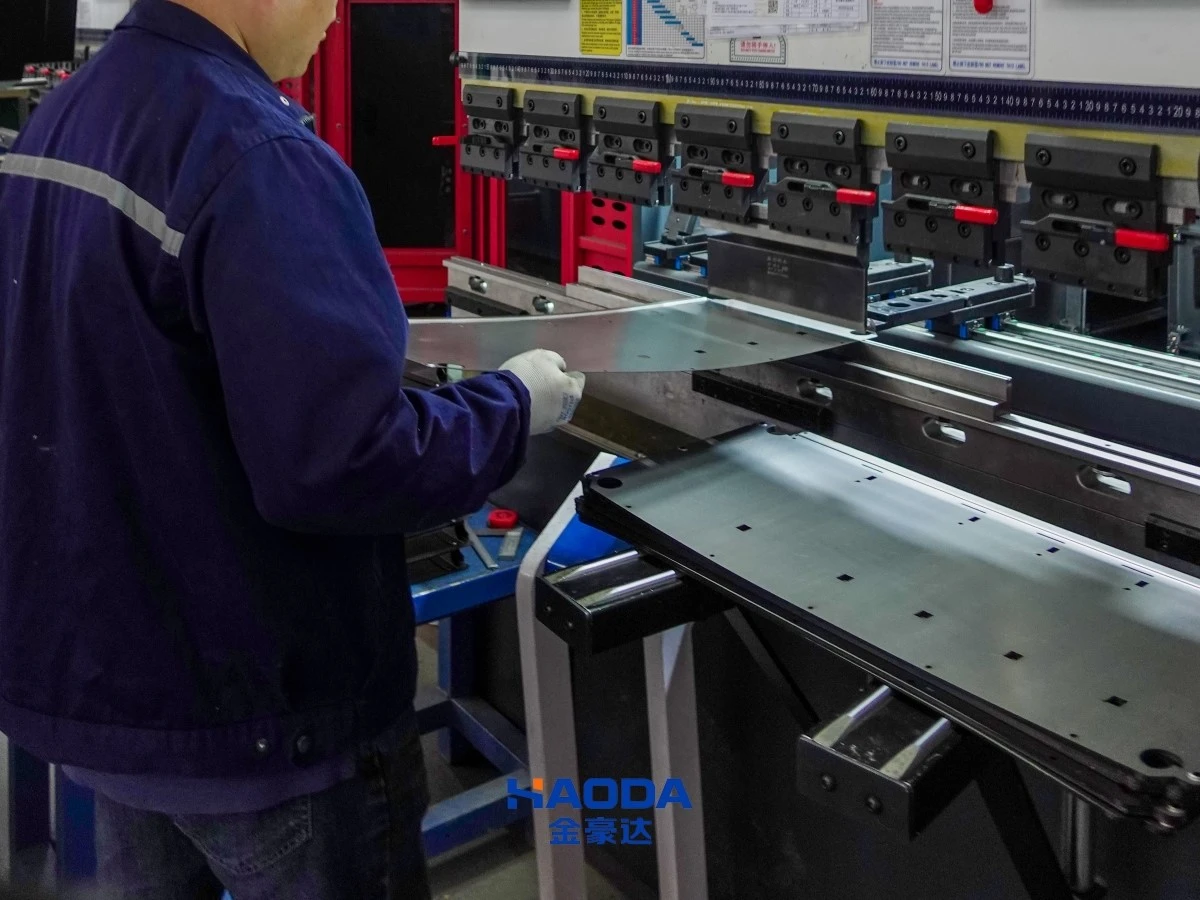

Zhejiang Jinhaoda Industrial & Trading Co., Ltd. was established in 2008 in Lishui, Zhejiang, and is a recognized high-tech enterprise. Production runs on a 33,000+ m² site with laser cutting, automated flexible bending, robotic welding, a digital powder-coating line and an MES that records each process step, so a nonconforming operation can be traced to the operator. Annual capacity is over 5 million units (tool boxes and tool carts combined).
Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, BSCI, EU General Product Safety Directive (GPSD) declaration of conformity, Zhejiang Manufacture certification, and design and utility-model patents covering tool carts and workstations. Test reports from third parties can be supplied where a buyer requires them.
Ordering Terms
|
Term |
Detail |
|
MOQ |
20 modules (same for custom color) |
|
Lead time |
15–30 days for custom orders |
|
Trade terms |
FOB, EXW |
|
Payment |
T/T, 30% deposit, 70% against bill of lading |
|
Port |
Ningbo |
|
Packing |
Split cartons per module; pallet/wooden frame; customer logo printing supported |
Frequently Asked Questions
Q: 1. How do I choose a module combination for my shop?
A: Start from wall length and the number of technicians per bay. Each 2302G-47 covers 1200 mm of wall; add wall cabinets and drawer cabinets for storage-heavy stations, or tool carts for mobile work. If the wall turns a corner, tell us the dimensions and we will draw a corner layout. When you specify garage storage cabinets with doors and shelves for a mixed fleet of bays, send one floor plan and we will match modules to it.
Q: 2. Can the cabinet be supplied with power outlets?
A: Yes. Sockets and plugs can be configured inside the cabinets. Send the destination country and required socket type with your inquiry so the specification can be confirmed before quotation.
Q: 3. What does the 24-hour salt spray result mean?
A: Coatings are tested to neutral salt spray (NSS) per GB/T 10125 / ISO 9227. The 24-hour duration is the standard factory acceptance level, with a maximum allowed rust area of 1%. Longer durations, such as 56 hours, can be tested on request.
Q: 4. How does sampling work, and can we change color or add our logo?
A: Order one sample first; the sample fee is credited against your bulk order and freight is paid by the buyer. Color samples take 2–3 days. Any color is possible from a color card you provide, and the MOQ for color or logo customization is 20 modules.
Q: 5. What support comes with installation and missing parts?
A: An installation manual and video guide are included. If a part is missing or a lock or drawer arrives faulty, we handle the claim after receipt; replacement parts are normally delivered within a month. We do not offer a fixed warranty period, since these are not mechanical products.
Request a Quote
Send your target quantity, module combination, worktop choice and color requirement through the inquiry form. Our sales team will reply with a quotation and confirm socket and layout details.
